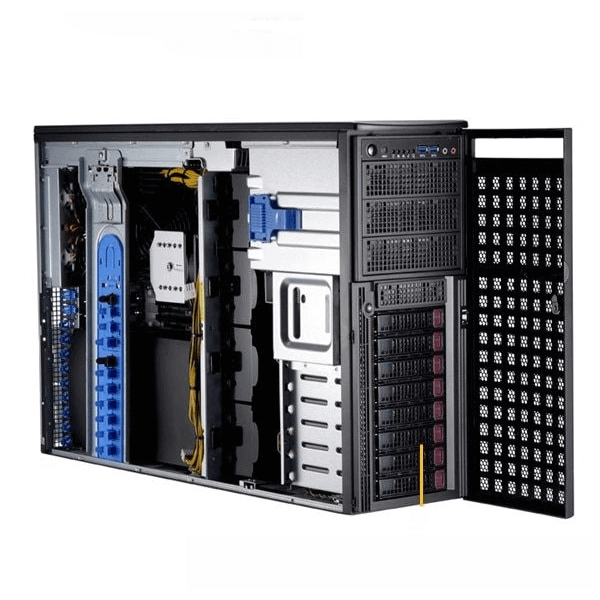

GPU SUPERWORKSTATION 7049GP-TRT (SYS-7049GP-TRT) SPECIFICATIONS
| Product Type/Brand | Supermicro Workstation |
| Product SKUs | SYS-7049GP-TRT / SuperServer 7049GP-TRT (Black) |
| Mainboard | Supermicro X11DPG-QT |
| PROCESSOR | |
| CPU | Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, 3 UPI up to 10.4GT/s Support CPU TDP 70-205W |
| Cores/Cache | Up to 28 Cores |
| SYSTEM MEMORY | |
| Memory Capacity | 16 DIMM slots Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM |
| Memory Type | 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| On-board Devices | |
| Chipset | Intel C621 Chipset |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Controller | Intel® X550 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
| INPUT/OUTPUT | |
| SATA | 10 SATA3 (6Gbps) ports |
| LAN | 2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port |
| USB | 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A) 4 USB 2.0 ports (2 rear, 2 via headers) |
| Audio | 7.1 HD Jacks |
| Video | 1 VGA port |
| Serial Port/Header | 2 COM ports (1 rear, 1 Header) |
| EXPANSION SLOTS | |
| PCI-Express | 4 PCI-E 3.0 x16 (double-width) slots 2 PCI-E 3.0 x16 (single-width) slots 1 PCI-E 3.0 x4 (in x8 slot) |
| CHASSIS | |
| Form Factor | 4U Rackmountable / Tower Optional Rackmount Kit |
| Model Chassis | CSE-747BTS-R2K20BP |
| DRIVE BAYS | |
| Hot-swap | 8 Hot-swap 3.5″ drive bays Optional 4x 2.5″ NVMe supported |
| M.2 | 1 NVMe based M.2 SSD Form Factors: 2280, 22110 |
| POWER SUPPLY | |
| Total Output Power & Input | 1200W with Input 100-127Vac 1800W with Input 200-220Vac 1980W with Input 220-230Vac 2090W with Input 230-240Vac 2200W with Input 220-240Vac (for UL/cUL use only) 2090W with Input 230-240Vdc (for CCC only) |
| Output Type | Backplanes (gold finger) |
| Certification |   Titanium Level |
